Monochrome (B/W) LCD module & LCD Panel

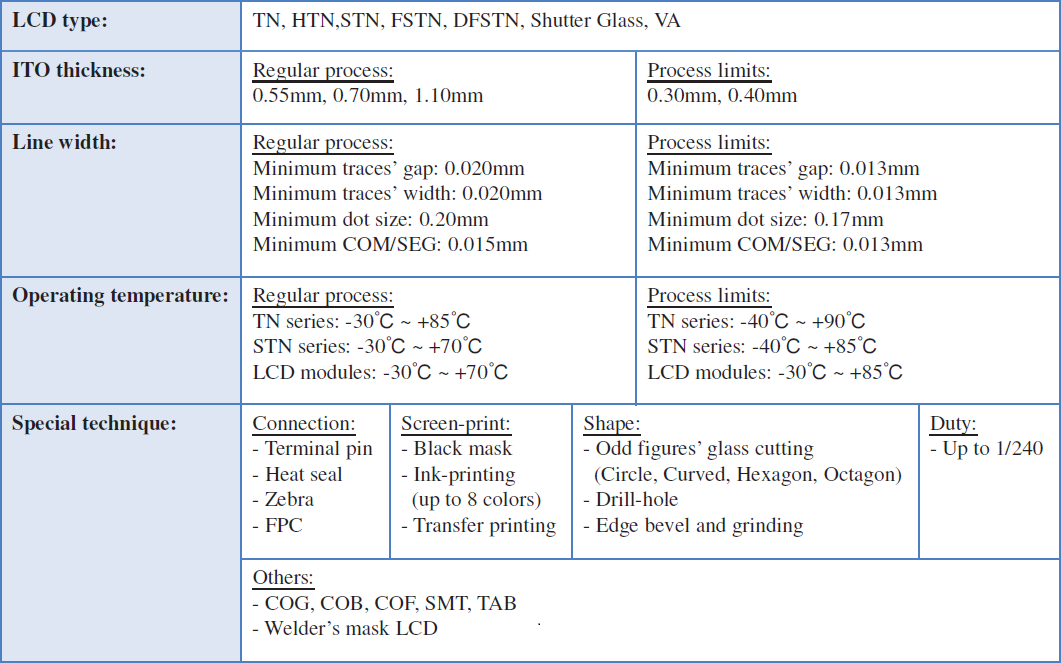

LCD Technical Capability:



Product Illustration:

For OEM project enquiry, other standard items, and complete product specification of the above, please send an inquiry to us at gftech@goldfame.com and we will come back to you asap.

LCD type: FSTN; Positive; Transflective
VA area: 50.0(W)×25.0(H) mm
OD size: 74.0(W)×41.7(H)×14MAX(T) mm
Number of dots:  128×64 dots

LCD type: FSTN; Positive; Transflective
VA area: 92.0(W)×53.0(H) mm
OD size: 125.2(W)×68.6(H)×9.5MAX(T) mm
Number of dots:  240×128 dots

LCD type: FSTN; Positive; Reflective
VA area: 33.4(W)×33.4(H) mm
OD size: 35.4(W)×66.4(H)×2.1MAX(T) mm
Number of dots:  100x100 dots

LCD type: FFSTN; Negative; Transmissive
VA area: 33.0(W)×18.0(H) mm
OD size: 37.5(W)×20.0(H)×2.8MAX(T) mm
Shutter:  One Segment

Round Shape LCD Solutions

Features: Narrow boundary (OD-VA diameter = MIN 2.4mm)
  Supports complete round shape and custom odd shape
  Hole drilling option
Standard item:  FSTN; Positive; Transflective
38.0/42.8 mm (VA/OD)
1674 dots (MAX 64x32 dots)

Typical LCD Solutions

Features:  Display type: ASTN, VA(EBTN), FFSTN, FSTN, STN, HTN, TN
  Connection: FPC, rubber zebra, metal pins, heat seal
  Angle cut option
  Curved angle option
