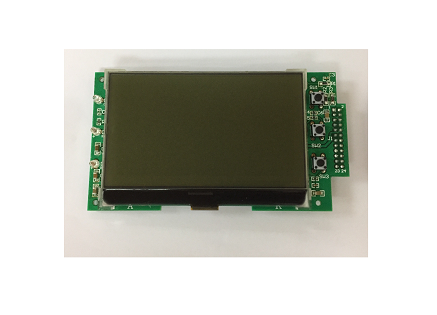

LCD type: FSTN; Positive; Transflective
VA area: 50.0(W)×25.0(H) mm
OD size: 74.0(W)×41.7(H)×14MAX(T) mm
Number of dots:  128×64 dots

LCD type: FSTN; Positive; Transflective
VA area: 92.0(W)×53.0(H) mm
OD size: 125.2(W)×68.6(H)×9.5MAX(T) mm
Number of dots:  240×128 dots

LCD type: FSTN; Positive; Reflective
VA area: 33.4(W)×33.4(H) mm
OD size: 35.4(W)×66.4(H)×2.1MAX(T) mm
Number of dots:  100x100 dots

LCD type: FFSTN; Negative; Transmissive
VA area: 33.0(W)×18.0(H) mm
OD size: 37.5(W)×20.0(H)×2.8MAX(T) mm
Shutter:  One Segment

Round Shape LCD Solutions

Features: Narrow boundary (OD-VA diameter = MIN 2.4mm)
  Supports complete round shape and custom odd shape
  Hole drilling option
Standard item:  FSTN; Positive; Transflective
38.0/42.8 mm (VA/OD)
1674 dots (MAX 64x32 dots)

Typical LCD Solutions

Features:  Display type: ASTN, VA(EBTN), FFSTN, FSTN, STN, HTN, TN
  Connection: FPC, rubber zebra, metal pins, heat seal
  Angle cut option
  Curved angle option

LCD type: FSTN-POSITIVE TRANSFLECTIVE
VA diameter: 38.0 mm
OD diameter: 42.8 mm
Number of dots: 1674 dots (MAX 64x32 dots)

1.54"

OD size:   31.8(H)×36.32(V)×1.05(D) mm
Color:   B/W or/ B/W/R
AA size:   27.6×27.6 mm
Resolution:   200×200 pixels

2.13"

OD size:   29.2(H)×59.2(V)×1.05(D) mm
Color:   B/W or/ B/W/R
AA size:   23.71(H)×48.55(V) mm
Resolution:   250×122 pixels

2.9"

OD size:   36.7(H)×79.0(V)×1.05(D) mm
Color:   B/W or/ B/W/R
AA size:   29.05(H)×66.89(V) mm
Resolution:   296×128 pixels

4.2"

OD size:   91.0(H)×77.0(V)×1.05(D) mm
Color:   B/W or/ B/W/R
AA size:   63.6(H)×84.8(V) mm
Resolution:   400×300 pixels

SEGMENT

OD size:   37.5(H)x53.0(V)x1.05(D) mm
Color:   B/W or/ B/W/R
VA size:   32.0(H)x43.0(V) mm

2.8"

OD size: 69.2(W)×50.0(H)×2.3(T) mm
AA size: 43.2(W)×57.6(H) mm
Resolution:   240(RGB)×320 pixels

4.0”

OD size: 59.74(W)×106.93(H)×3.23(T) mm
AA size: 51.84(W)×86.40(H) mm
Resolution:   480 (RGB)×800 pixels

4.3"

OD size: 105.5(W)×67.1(H)×4.1(T) mm
AA size: 95.04(W)×53.86(H) mm
Resolution:   480(RGB)×272 pixels

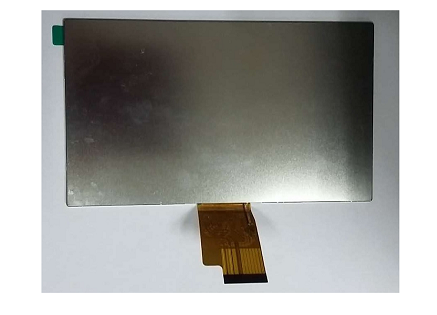

7.0”

OD size: 163.8(W)×97.0(H)×2.6(T) mm
AA size: 154.21(W)×85.92(H) mm
Resolution:   1024(RGB)×600 pixels
